Dave

Can You Add Oil to a Hot Engine?

by
Can you add oil to a Hot Engine

Can You Add Oil to a Hot Engine & How Long Will It Take to Cool Off   There is nothing more frustrating than a check engine light flashing for miles as you drive to work or drop the kids off at school. Many times, that light is just a simple indicator that you need … Read more

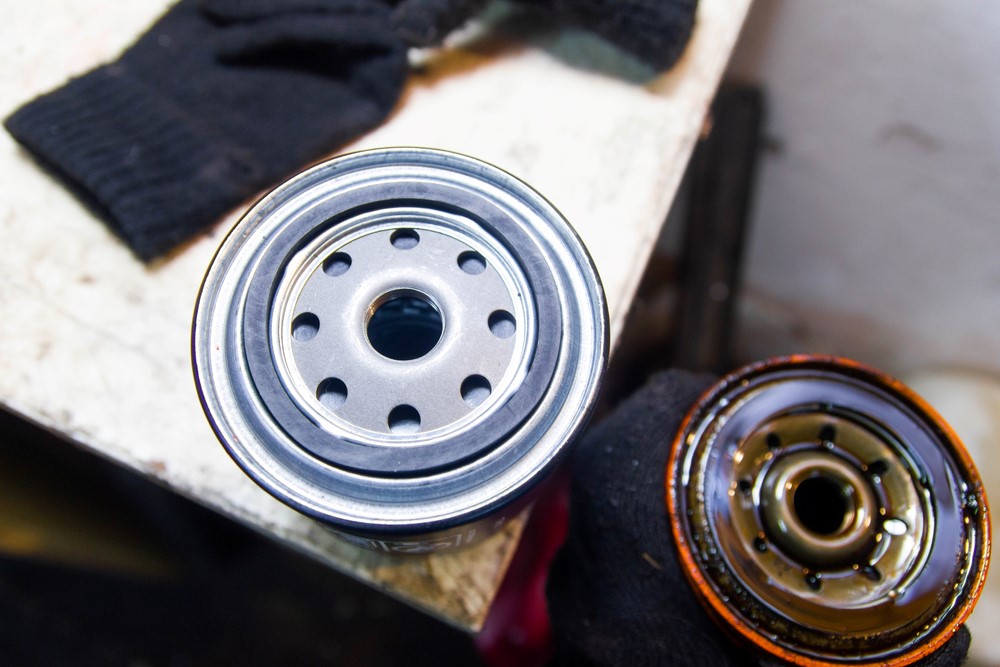

How to Take Off Oil Filter

by
How to take off oil filters

Changing your engine oil is one of the many tasks required to keep your vehicle operating the way it should. It will also save you from hefty mechanic bills once your engine overheats and blows. Read this article to learn some tips on how to take off an oil filter. Keeping an oil filter is … Read more

Best Oil for Ecodiesel Ram 1500 Engine

by

RAM 1500 ECODIESEL MAINTENANCE INTERVALS & SERVICE INFORMATION Select service procedures are required more frequently if using a biodiesel blend greater than B5. Service intervals for these procedures are not affected if using a biodiesel blend of B5 or less. A maximum B20 biodiesel blend is compatible with the EcoDiesel; using a B6 – B20 … Read more

Best Oil for 6.7 Powerstroke

by

What kind of oil is best for a 6.7 Powerstroke? This type of engine requires synthetic oil, preferably full synthetic oil. This oil is much better than the standard oil where reliance on old oil types is becoming as extinct as the dinosaurs themselves. Discover the best oil for 6.7 Powerstroke Diesel engines in the … Read more

6.6 Duramax Oil Capacity

by

What is the oil capacity for the 6.6 Duramax Diesel engine? All of the engines have the same capacity since the introduction of the engine back in 2001. The manufacturers rating for the 6.6 Duramax oil capacity is 10 quarts, but you will probably only need around 9 quarts. That is because the way the … Read more

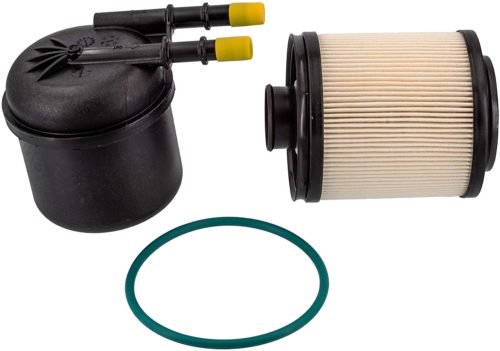

Best Fuel Filter for 6.7 Powerstroke

by
Best fuel filter 6.7 Powerstroke

A fuel filter is a filter in a fuel line that screens out dirt and rust particles from the fuel, and is normally made into cartridges containing a filter paper. They are found in most internal combustion engines. Discover the best fuel filter for 6.7 Powerstroke in the following buying guide. There are also step … Read more

Best Oil Filter for Duramax Diesel Engines

by
Best Oil Filter for Duramax Diesel Engines

Read about the best oil filter for Duramax Diesel engines and gain a better understanding of the best oil filter for synthetic oil that can lead to an improved engine performance and higher mileage. In general, the best oil filters will reduce contaminants from entering your engine and improve their removal from your engine’s oil.

People are often confused about what defines an absolute or nominal micron rating in oil filters, but it’s really very simple. A nominal micron rating means that 99% of particles in this size range will be captured by the filter while an absolute micron rating means that 100% of particles in this range will be captured by the filter. If your vehicle requires an absolute micron oil filter , make sure you buy one with this rating.

Oil filters should be replaced with each oil change, and the best oil filters will protect your engine from environmental contaminants such as dirt, sand and water. If the best oil filter for your vehicle doesn’t have a great micron rating or other superior characteristics, then it won’t do much good at all. As always, read the reviews before buying an oil filter so you can ensure it is best for your car or truck.

The best way to find out which filter works best for your car is to check its owner’s manual or ask a certified mechanic . You might also want to consider purchasing an OEM (original equipment manufacturer) part as they are designed specifically for each individual vehicle by the same company that manufactured it.

Each truck and car manufacturer has their own brand of oil filter that best matches the oil filter best for each make and model. For example, Chevrolet and GMC trucks come with a AC Delco oil filters best suited for them.



The Duramax Diesel 6.6L engine oil filter should be changed every 10,000 miles or when the “Change Engine Oil” message is displayed by the oil life monitoring system. Below are some of the best oil filters for synthetic oil in the 6.6 Duramax diesel engine.



Best Oil Filter for Duramax Diesel Engines – Top Rated Filters Listed



AC Delco PF2232 Oil Filter



Equipped with 98 percent multi pass filtering efficiency at 25 to 30 microns for excellent filtering capabilities. Finding a filter that is strong becomes imperative to prevent potential problems. That is why AC Delco oil filters utilize glass-filled nylon for higher strength and greater flow. Nylon is far less likely to tear, rip or shred.

  • Has a cellulose media that traps particles 1/3 the width of human hair to help ensure a clean supply of oil to engine components
  • Has a thermosetting adhesive seal to hold filtering media in place for consistent, dependable filtration
  • Equipped with a superior filter capacity, enhanced efficiency, consistent flow management, and a high durability design to provide exceptional filtering performance
  • Has a burst strength five times greater than most engine oil operating pressures after the oil reaches operating temperatures (as long as the normal engine oil operating pressure is not greater than (51 psi), for enhanced durability

CHECK LATEST PRICE ON AMAZON



NAPA Gold 7202 Oil Filter



The Napa Gold 7202 oil filter has a filtering efficiency of 99% at 23 microns and can hold 18 grams of dirt. It is made with Microglass media and has a flexible silicone anti-drain back valve.

The filter has a Beta Ratio of 2/20/75 = 3/12/17

  • NAPA Gold Oil Filters Provide Excellent Engine Protection Using Conventional, Synthetic, or Synthetic-blended Motor Oils, As Recommended By The OE Vehicle Manufacturer
  • Laboratory Test Performance per ISO 454812: 18 Grams Dirt (NAPA Gold # 1515), 99% Efficient At 23 Microns (Based On NAPA Gold # 1515, 1356, 7060) – Has 13 Lb. By-Pass Relief Valve
  • Use For Normal And Severe Driving Conditions Such As Stop And Go Traffic, Dirt Roads, Construction Sites, Short Trips And Interstate Travel
  • This Filter Traps Up To 50% More Dirt And Contaminants Than ProSelect w/ The Best Combination Of Capacity & Efficiency For Severe Conditions. Use Gold For Manufacturer OE Recommended Oil Change Intervals

CHECK LATEST PRICE ON AMAZON



Fleetguard LF16102 Oil Filter



Rated at 99% efficiency for 30 microns.

In the 1980s, Cummins Filtration took another step forward with the introduction of combination full flow/by-pass filtration in the patented LF3000™. The LF3000™ led the way for today’s advanced lube filtration systems, which provide increased engine life over all service intervals, as well as:
Extended service intervals
Increased vehicle uptime
Decreased vehicle maintenance costs
Reduced disposal costs

StrataPore® Media
By implementing the revolutionary StrataPore multi-layered media in the 1990s, the combo filter was improved even more. StrataPore as introduced in the full flow section to work in combination with the stacked discs to remove the smallest dirt particles, which cause the most engine damage. This configuration reduces engine wear by as much as 60% in some applications.

Venturi™ Combo System
The technology was taken even further with the introduction of the Venturi™ Combo. The OEM-approved Venturi allows the lube system to perform up to four times as long and remove up to three times the contaminants as a full synthetic filter. The patented Venturi nozzle provides a low-pressure zone for the oil to flow through the pleated media for increased efficiency. This innovative technology results in longer life and better performance for your vehicle. And, unlike its competitors, the Venturi was tested in a real world environment, not bench tested.

NanoNet® Media Technology
With advanced research and media manufacturing capabilities, Cummins Filtration has developed nanofiber media for Fleetguard lube filters. The pairing of NanoNet® media with StrataPore® media has created a new breed of lube filter that offers higher efficiency, higher capacity and the best cold flow vs restriction available. This makes the LF14000NN the best choice for providing maximum protection for your Cummins ISX engine.

CHECK LATEST PRICE ON AMAZON



Baldwin 1441 Oil Filter



  • Micron rating of 9.8 Nominal (95% effiecient) and 27 Absolute (largest particle that will pass through filter)
  • Baldwin  spin on oil filters protect your engine from wear particles that can otherwise lead to premature parts failure. Longer drain intervals requires filters that have both high capacity and the ability to withstand the rigors of time and temperature without failing or going into bypass. Baldwin’s lube filters are up to the challenge.
  • Keep contaminants causing damage, away from the sensitive parts of the engine
  • Gaskets provide exterior seal between the filter and engine
  • Highly durable and reliable
  • Improves engine life

CHECK LATEST PRICE ON AMAZON



Conclusion

All of the above listed filters are a good choice for your Duramax Oil Change. Just be sure to use a good quality synthetic oil with each oil change and you will get a lot of years and use out of your truck.



Read about engine oil filter ratings in this related article.





Best Oil Filter for 6.7 Powerstroke

by
Ford Diesel Truck

Gaining a better understanding of the best oil filters for synthetic oil can lead to an improved engine performance and higher mileage. In general, the best oil filters will reduce contaminants from entering your engine and improve their removal from your engine’s oil. Discover the best oil filter for 6.7 Powerstroke in the following buying guide.

People are often confused about what defines an absolute or nominal micron rating in oil filters, but it’s really very simple. A nominal micron rating means that 99% of particles in this size range will be captured by the filter while an absolute micron rating means that 100% of particles in this range will be captured by the filter. If your vehicle requires an absolute micron oil filter, make sure you buy one with this rating.

Oil filters should be replaced with each oil change, and the best oil filters will protect your engine from environmental contaminants such as dirt, sand and water. If the best oil filter for your vehicle doesn’t have a great micron rating or other superior characteristics, then it won’t do much good at all. As always, read the reviews before buying an oil filter so you can ensure it is best for your truck.  Listed below are some of the best rated oil filters for your 6.7 Powerstroke oil change.

The best way to find out which filter works best for your car is to check its owner’s manual or ask a certified mechanic . You might also want to consider purchasing an OEM (original equipment manufacturer) part as they are designed specifically for each individual vehicle by the same company that manufactured it.

Each truck manufacturer has their own brand of oil filter that best matches the oil filter best for each make and model. For example, Ford Super-Duty trucks come with a Motorcraft oil filter best suited for them.

Below are some of the best oil filters for synthetic oil in the 6.7 Powerstroke Ford diesel engine.



Best Oil Filter for 6.7 Powerstroke Buying Guide



Motorcraft FL-2051S

The Motorcraft FL-2051S achieves an effieciency of 98% at 18 microns and holds up to 29 grams of contaminants.  The filter has a 20 microns absolute rating. It is made with 100% microglass media and has a silicone anti-drain back valve.



  • Large media area Provides optimal capacity and efficiency
  • Fluted case end Helps make removal easier
  • Well bonded end plates Help keep consistent pleat spacing
  • Perforated steel center tube Helps prevent collapse under pressure
  • Helps protect against engine wear by screening out abrasives, such as carbon, sand, dust and bits of metal before they can get into your oil
  • Pressure-relief valves help minimize the chance of contaminated oil circulating back into the engine
  • Pressure-relief valves also help maintain the supply of oil to the engine under extreme cold conditions or if the filter gets clogged
  • Steel cases are “ironed” for a precise fit, fluted to ease removal and painted to resist rust
  • Top rated filter by the manufacturer for 6.7 Powerstroke oil change

CHECK LATEST PRICE ON AMAZON

Napa Gold 7151 Oil Filter

The Napa Gold 7151 has a filtering efficiency of 99% at 23 microns and can hold 18 grams of dirt. It is made with Microglass media and has a flexible silicone anti-drain back valve.

The filter has a Beta Ratio of 2/20/75 = 3/12/17

  • NAPA Gold Oil Filters Provide Excellent Engine Protection Using Conventional, Synthetic, or Synthetic-blended Motor Oils, As Recommended By The OE Vehicle Manufacturer
  • Laboratory Test Performance per ISO 454812: 18 Grams Dirt (NAPA Gold # 1515), 99% Efficient At 23 Microns (Based On NAPA Gold # 1515, 1356, 7060) – Has 13 Lb. By-Pass Relief Valve
  • Use For Normal And Severe Driving Conditions Such As Stop And Go Traffic, Dirt Roads, Construction Sites, Short Trips And Interstate Travel
  • This Filter Traps Up To 50% More Dirt And Contaminants Than ProSelect w/ The Best Combination Of Capacity & Efficiency For Severe Conditions. Use Gold For Manufacturer OE Recommended Oil Change Intervals

CHECK LATEST PRICE ON AMAZON



Fleetguard LF17494 Oil Filter

The Fleetguard Brand is a division of Cummins Filtration which has been defining quality filtration products since 1963. The Fleetguard LF17494 Oil Filter specifications on micron ratings are 100% efficiency at 30 microns and 60% efficiency at 10 microns.

  • Contains the Stratapore Filtration Media that is a multi-layered filter media
  • Oil filter media provides the optimum number of layers for particle removal
  • Oil filter provides a nearly 50% reduction in restriction during cold starts
  • It allows truck owners to extend service intervals without compromise
  • Cummins Filtration provides lube products that meet and exceed OE performance requirements and the new challenges of modern engine technology.



CHECK LATEST PRICE ON AMAZON



Baldwin B7379 Oil Filter

Baldwin lube filter spin-ons protect your engine from wear particles that can otherwise lead to premature parts failure. Longer drain intervals requires filters that have both high capacity and the ability to withstand the rigors of time and temperature without failing or going into bypass. Baldwin’s lube filters are up to the challenge.



  • Micron Rating 8 Absolute
  • Includes 20 PSID By-Pass Valve
  • Anti-Drainback Valve
  • Length 6 7/16 in
  • Outside Dia. 3 11/16 in
  • Compatible Competitor Part Number: Motorcraft FL2051



CHECK LATEST PRICE ON AMAZON



6.7 Powerstroke Oil change recommended intervals



Replace engine oil & oil filter 10,000 miles or as indicated by the instrument cluster message center
(Intelligent Oil Life Monitor system will adjust interval to driving conditions)



Read about engine oil filter ratings in this related article.

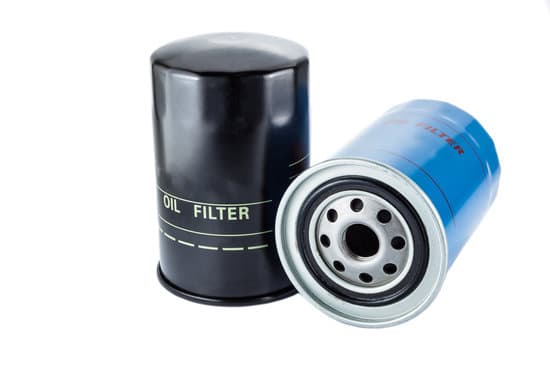

Engine Oil Filter Ratings Explained

by
Engine Oil Filter Ratings Explained

Filters are rated on their ability to remove particles of a certain size from a fluid, read the following article about engine oil filter ratings explained. For example, a filter that is rated as a “10 micron” filter can capture particles as small as 10 micrometers. The only way to know exactly what this means, however, is if the filter testing methods and rating standards utilized are both known.



The most commonly used filter ratings are nominal and absolute micron rating. Read the following article to understand how engine oil filter ratings are explained.



Nominal Rating



A nominal rating indicates the filter’s ability to prevent the passage of a minimum percentage of solid particles greater than the nominal rating’s stated micron size. These particles of each specific contaminant are measured by weight. The nominal rating also represents an efficiency figure or degree of filtration. A nominal rating example is “95% of 10 micron” – where the filter prevents 95% of all 10 micron and larger particles from passing through.



However, the nominal rating method is generally discouraged. During testing, differing conditions like operating pressure and contaminant concentration vary enough that the rating provides an inconsistent result and a lack of uniform measurement.



Absolute Rating



The absolute rating, or cut-off point, of a filter is the diameter of the largest spherical glass particle which will pass through the filter. These diameter dimensions are expressed in micrometers – or one/one millionth of a meter. The absolute rating reflects the pore opening size of the medium. Filter media with an exact and consistent pore size have an exact absolute rating.



This absolute rating should not be confused with the largest particle passed by a filter: the absolute rating simply determines the size of the largest glass bead that will pass through the filter under very low pressure differentials and non-pulsating conditions.



Filter media with exactly consistent pore sizes do not typically exist in practice. Pore size is affected by the form of the filter element and is not necessarily consistent with the actual open areas. It is possible for the shape of the particle, say if it is cylindrical, to allow the particle to pass through a much smaller hole in the media than would have been expected, based on at least one of the particle’s dimensions. This type of passage hinges on the size and shape of the opening and on the fluid depth over which filtering is provided.



A filter bed is typically created wherein particles collect on the media surface and result in an increased blocking action. This further decreases the permeability of the element. The blocking can increase so much that the pressure drop across the filter becomes excessive and the flow rate through the system drops dramatically.



Some see absolute rating as a non-realistic description. The term absolute means that no particle larger than that rating can pass through the filter, which limits the types of media to those with consistent pore size and ones that show a perfect retention of particles.



Beta Ratio



Up until recently, a universally accepted test method to measure the media pore size has not existed. A newer test procedure called multi-pass testing or Beta ratio testing has changed this. This method yields readily comparable test results and was introduced to give the filter manufacturer and the end user an accurate comparison between filter media.



Multi-pass testing uses a specified contaminate, of known sizes, added regularly in measured quantities to the fluid which is being pumped through the filter. At timed intervals, samples of the fluid are simultaneously taken from both downstream and upstream of the filter. Using particle counters, particles in each sample are measured and counted.



Based on the results of these measurements, a Beta ratio is determined by dividing the number of particles of a particular size in the upstream flow by the number of particles of the same size in the downstream flow. In essence, the Beta ratio is an indicator of how well a filter controls a specifically sized particulate.



For example, if one out of every two particles in a fluid pass through the filter, the Beta ratio is 2/1 = 2. This shows the number of particles upstream (2) divided by the number of particles downstream (1). Based on this method, filters with a higher beta ratio retain more particles, have a higher efficiency, and therefore are more effective filters.
